P&K KFA (VDI 3781 part 4)

Samples

The Program will be supplied with following examples:

• vdi_A1
  Sample A 1 from the guideline. Real building ensemble
• vdi_A21
  Sample A 2.1 from the guideline. Rooftop structures considered
• vdi_A22
  Sample A 2.2 from the guideline. Asymmetric pitch roof
• vdi_A23
  Sample A 2.3 from the guideline. Single pitch roof
• vdi_A24
  Sample A 2.4 from the guideline. Building with saw-tooth roof and non-combustion installation
• vdi_A25
  Sample A 2.5 from the guideline. Hipped roof
• vdi_A26
  Sample A 2.6 from the guideline. Mansard roof
• vdi_H2-Ridge-Inconsistency und vdi_H2-Flat-Inconsistency
  Sample to demonstrate the inconsistency of the recirculation zone at building edges
• Siedlung (settlement)
  Complex building ensemble

Sample screens

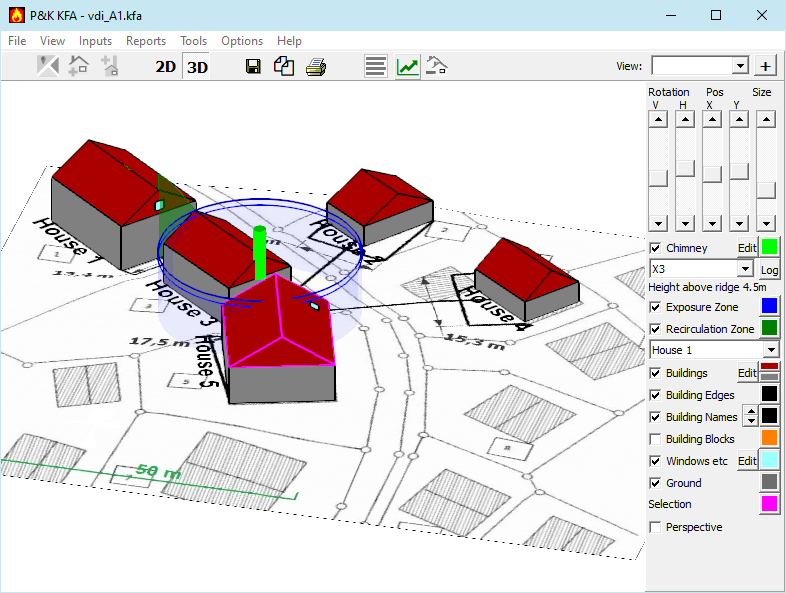

Perspective terrain view (3d view)

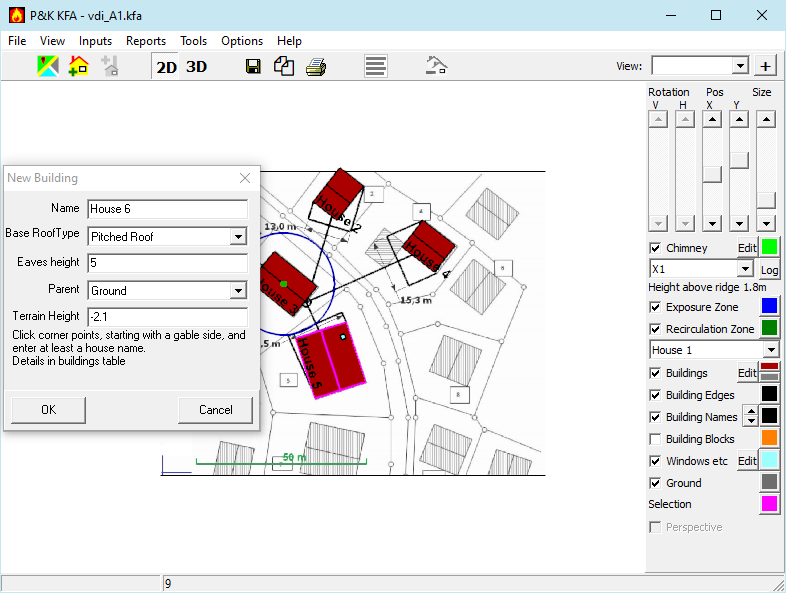

Add building

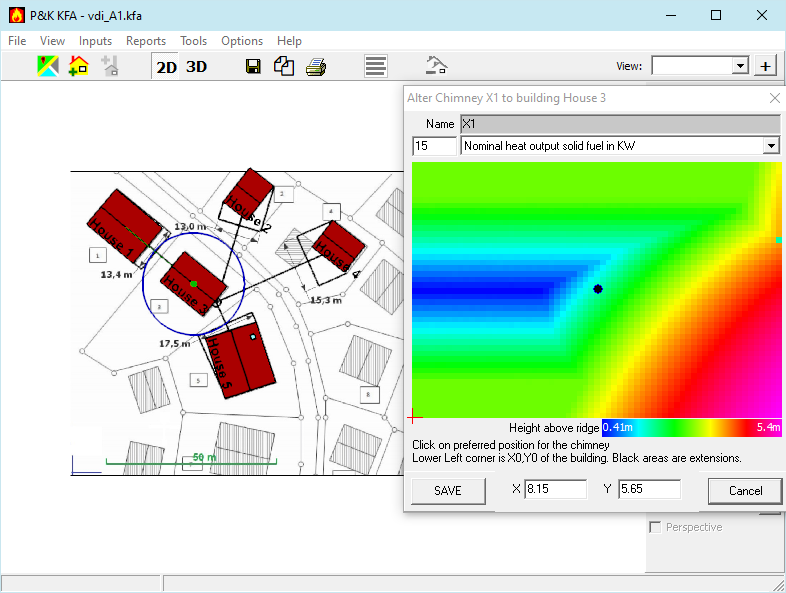

Add chimney (stack)

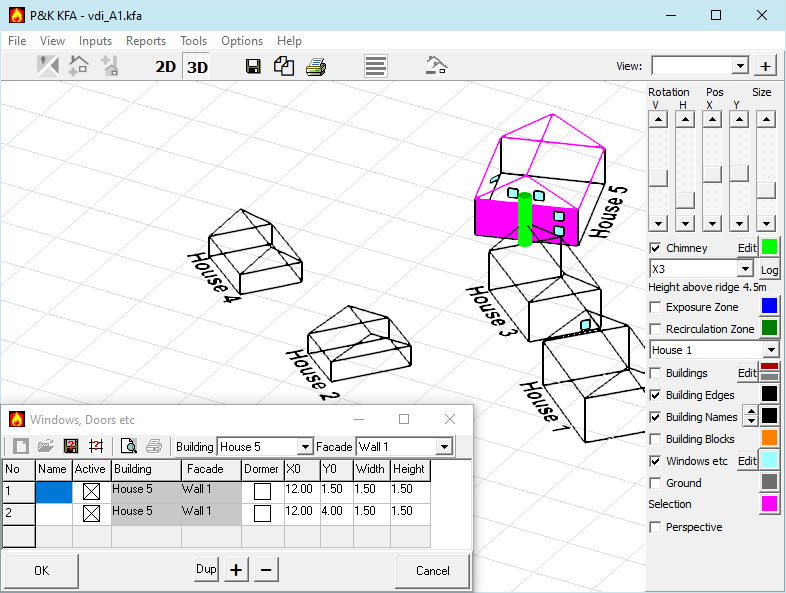

Add air intake

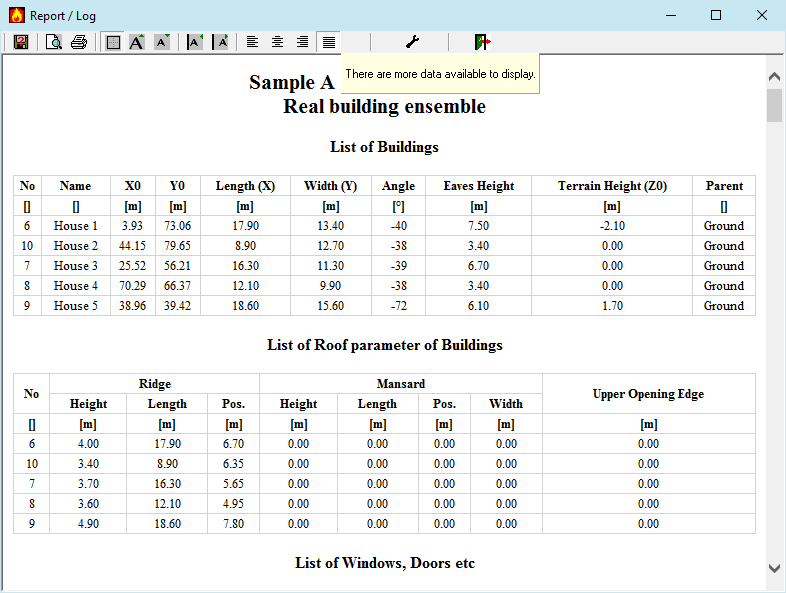

Calculation log

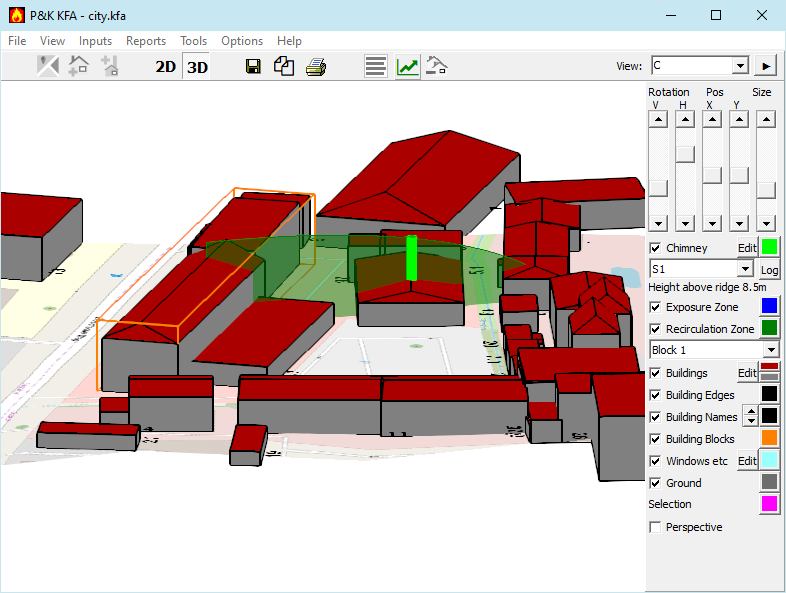

Imported Buildings with building block

Buildings:
Licence: Data licence Germany – attribution – version 2.0
Attribution: Freie und Hansestadt Hamburg, Landesbetrieb Geoinformation und Vermessung
Background Map: © OpenStreetMap contributors
