P&K 3783 (VDI 3783 part 1+2)

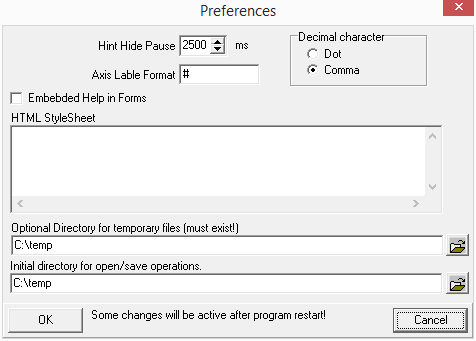

Program preferences can be modified in this form. They are stored in Application-Configuration.
If the hints disappear too fast, a value for "HintHidePause" can be set in the file P&K.ini (in the program directory). E.g. "HintHidePause.value=2500" means, the hint remains visible for 2.5 sec., if no other actions with the mouse were made.
Axis label format
When not satisfied with the axes label format, one can insert a format definition in the file p&k.ini, which can be found in the program directory. The line "AxisLabelFormat.Text=0.######" means, the decimal dot is to be shown, the leading zero is to be shown and a maximum of 6 digits of the fraction. The line "AxisLabelFormat.Text=#,###.###" will show the comma when the value exceeds 1000, no leading zeros, a decimal dot and a maximum of 3 digits of the fraction. The quotation marks are not to be inserted.
Real number Decimal Character in outputs. Numbers, which are stored as strings are not affected.
In case the HTML-Layout needs to be modified, a so called stylesheet can be used. The simple entry tells the browser to display the content of table cells in 9 point font size. Other used HTML-Elements are: th (table header cells), h2 (headings), h3 (sub headings) and p (paragraph).
This sets the start or initial folder for open and save operations.
